BliKVM is a production-ready, plug and play KVM-over-IP device that offers professional users a convenient solution for remote server or workstation management. It is based on Linux and fully open source. With BliKVM, you can easily power on/off, restart your computer, configure UEFI/BIOS settings, and perform OS reinstallation using an emulated Mass Storage Device. BliKVM simulates a keyboard, mouse, and monitor, all accessible through a web browser, ensuring a seamless user experience. Its hardware-level access guarantees independence from specific remote ports, protocols, or services, making it a highly flexible and reliable remote management solution for professionals!
Connectivity diagram

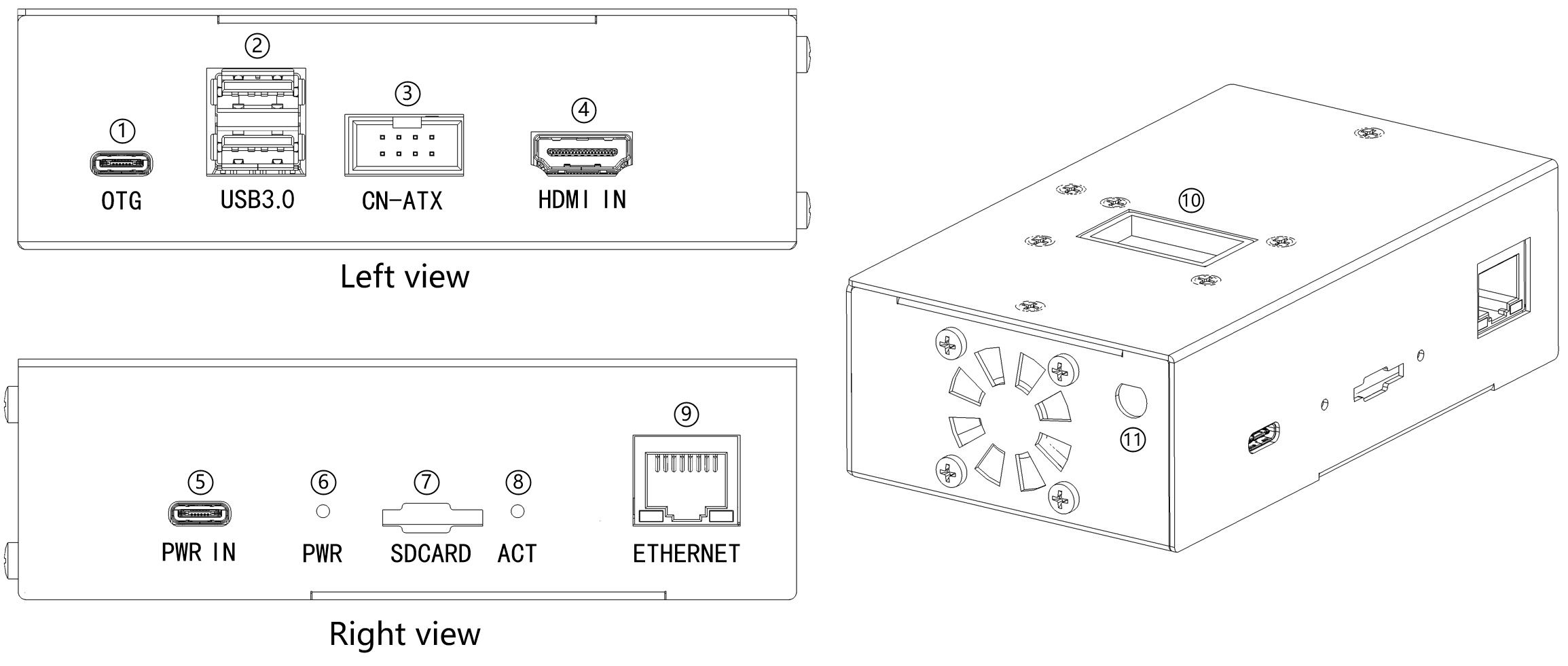

| 1 | OTG port | 7 | Micro SD card slot |
|---|
| 2 | USB3.0 x2 | 8 | ACT LED (green) |
| 3 | ATX control port | 9 | Ethernet port |
| 4 | HDMI video input port | 10 | OLED Display |
| 5 | PWR IN port | 11 | Antenna mounting hole |
| 6 | Power LED (red) | | |
Specifications
| Parameter name | Characteristics |
|---|
| Power | |
| 5V 3A | PWR IN port |
| |
| Connectivity/Interfaces | |
| HDMI IN | HDMI video input port |
| OTG | Keyboard, mouse, mass storage, and other external device emulation |
| CN-ATX | Turn on/off or restart the controlled computer |
| Micro SD card slot | Persistent storage for OS and your data |
| PWR IN port | 5V 3A power port |
| |
| Displays and indicators | |
| LED indicators | Power LED (red), ACT LED (green) |
| OLED display | OLED 128x64 0.96 inch |
| |
| Video | |
| Supported resolutions | Up to 1920x1200@60Hz |
| Video compression methods | H.264, MJPEG |
| |
| Core | |
| Chip | Raspberry Pi Compute Module 4 |
| |
| Power consumption | Up to 15W |
| |
| Environmental | |
| Operating temperature | 0°C to 70°C |
| Storage temperature | -20°C to 60°C |
| |
| Dimensions and weight | |
| Size | 120(L) x 70W) x 37(H) mm |
| Weight | 0.45 kg |

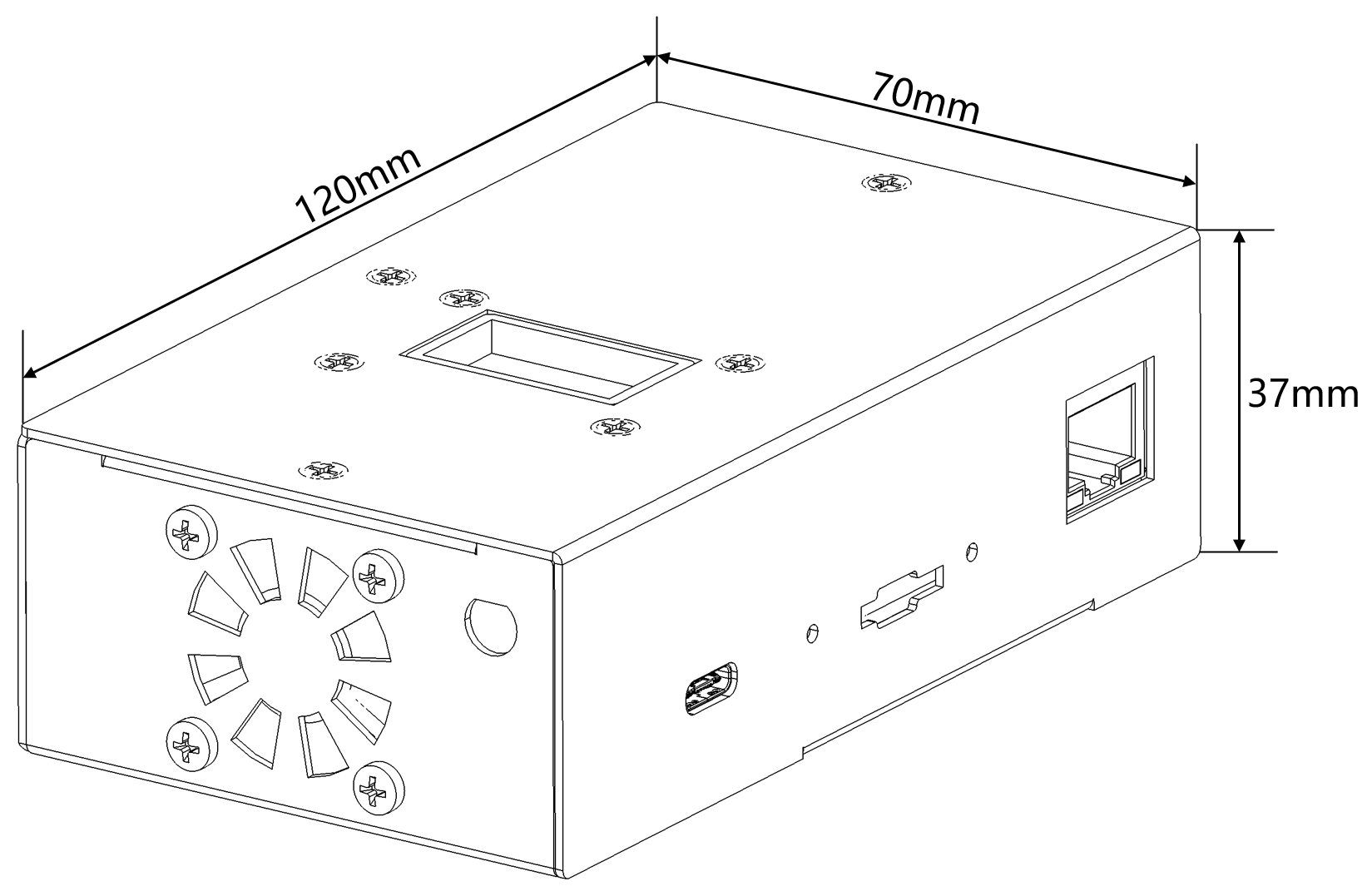

Dimensions Schematic Diagram
