Flash an SD card and reinstall the system
Reinstall for a fresh installation, unrecoverable system or intentional full-image replacement. For routine version changes use app / system updates; for configuration cleanup see factory reset.
Choose an image
- Check the hardware model, SoC, storage and release compatibility notes.
- Use Firmware downloads to select a matching full-disk image. Check its size and supplied checksums.
- Back up needed data and arrange local recovery access. Full images, app archives and RAUC bundles are different packages.
This procedure uses a whole-disk .img. Inspect compressed packages and release instructions: extract an enclosed .img before writing it. App packages use the app update flow. A .raucb is a system update bundle and cannot be flashed directly to an SD card. Renaming another model's image does not make it compatible.
Prepare for your storage type
| Storage | Basic procedure |
|---|---|
| Removable microSD | Power off, remove the card and write a matching full image with a card reader. |

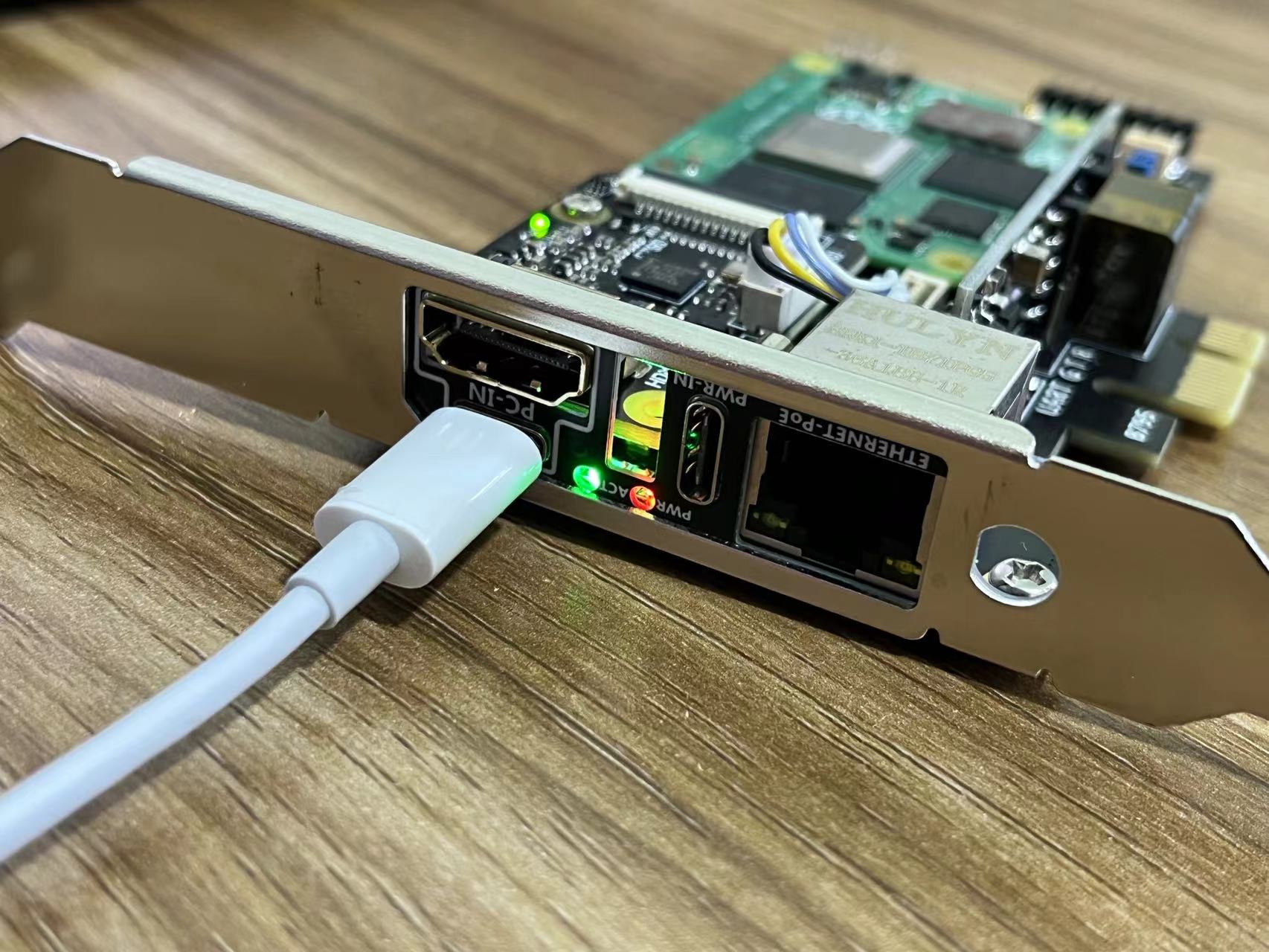

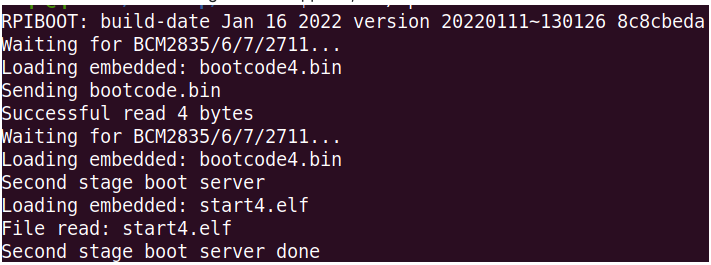

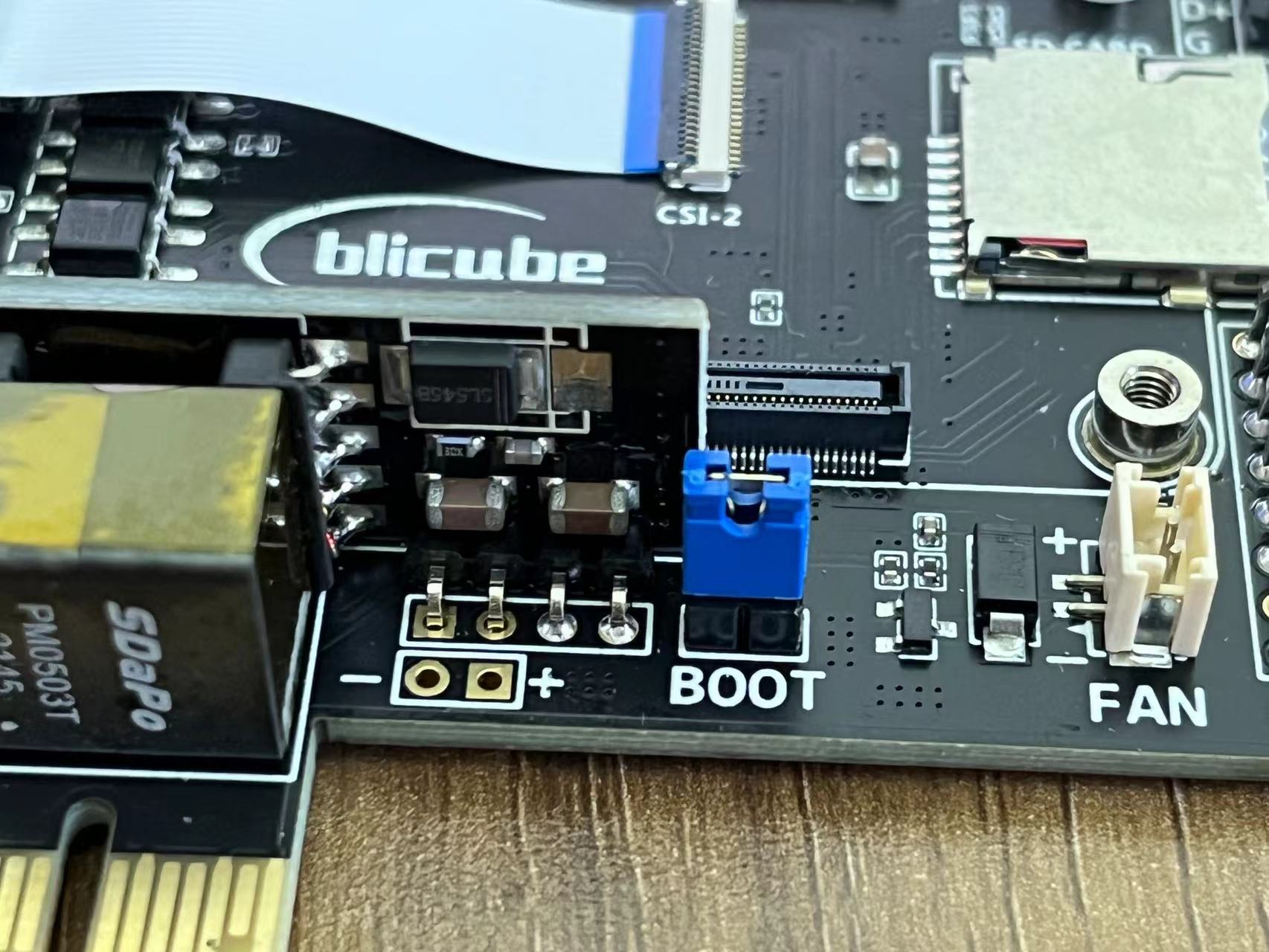

| Onboard eMMC, such as CM4 variants | Follow the model guide to enter USB boot / flashing mode, expose the target storage to the host, then write the image. |
| Other onboard storage | Use the recovery tool explicitly specified for that board and release. |
Use a tool that writes and verifies entire disks. Writing overwrites the selected storage. Disconnect unrelated removable drives and identify the target by its details, not drive-letter order.
Flash microSD step by step
This section applies to devices booting from removable microSD. For onboard eMMC, enter the model-specific flashing mode first; inserting an arbitrary SD card does not reinstall eMMC.
1. Prepare the image, card and tool
- A Windows, macOS or Linux computer and working card reader.
- A microSD card meeting the release's capacity requirement, including the full uncompressed image size.
- A matching image from Firmware downloads. Verify any supplied checksum after downloading.
- Install the appropriate version of balenaEtcher. Button names may vary by version or language.
Flashing overwrites the entire selected card, including its system, configuration and files. Back up first, disconnect unrelated drives and check the target's capacity and name.
2. Remove and connect the card
If the device works, shut it down normally, then disconnect power. Remove microSD and connect it to the computer through the reader. Cancel any format prompt; manual formatting is unnecessary.
3. Select the image
Open Etcher, choose Flash from file and select the downloaded, extracted .img. Do not choose an app archive or RAUC bundle, or simply copy the image file into the card's directory.

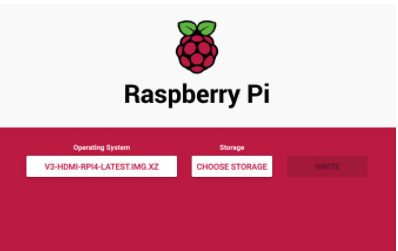

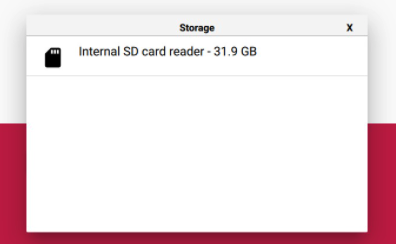

4. Select the target
Choose Select target. Identify the card by capacity, name and reader details. If unsure, unplug the reader to see which device disappears, then reconnect and select it again.
Confirm it is the card to reinstall, rather than your computer's system or backup drive.

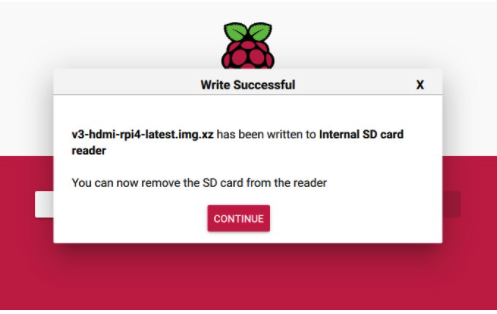

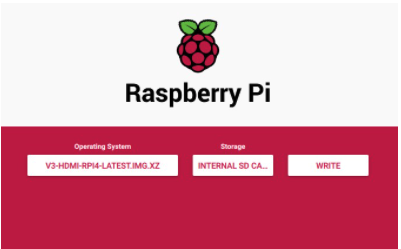

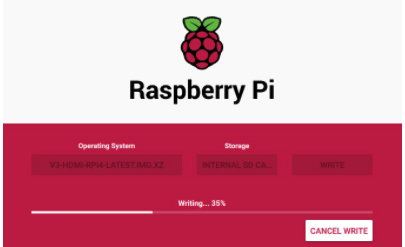

5. Write and verify
Choose Flash!, grant OS disk-write permission when prompted and keep the reader connected until writing and verification finish successfully. Do not remove the card while progress is incomplete.
Etcher's official site covers verification and troubleshooting. On failure, check the download, reader, USB port and card, then repeat writing and verification.
6. Eject and reinstall
If the tool has not ejected the card, safely eject it through your OS before disconnecting. Reinsert it into the powered-off BliKVM, connect network and stable power, then check first boot below.
The flashed card contains Linux partitions your computer may not read. Do not format them to dismiss a warning. Successful writing still needs a successful device boot.

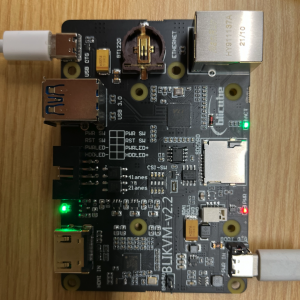

First-boot checks
- Safely remove the medium, reinstall it and restore the model's normal boot mode.
- Connect stable power and network; let initialization finish without interruption.

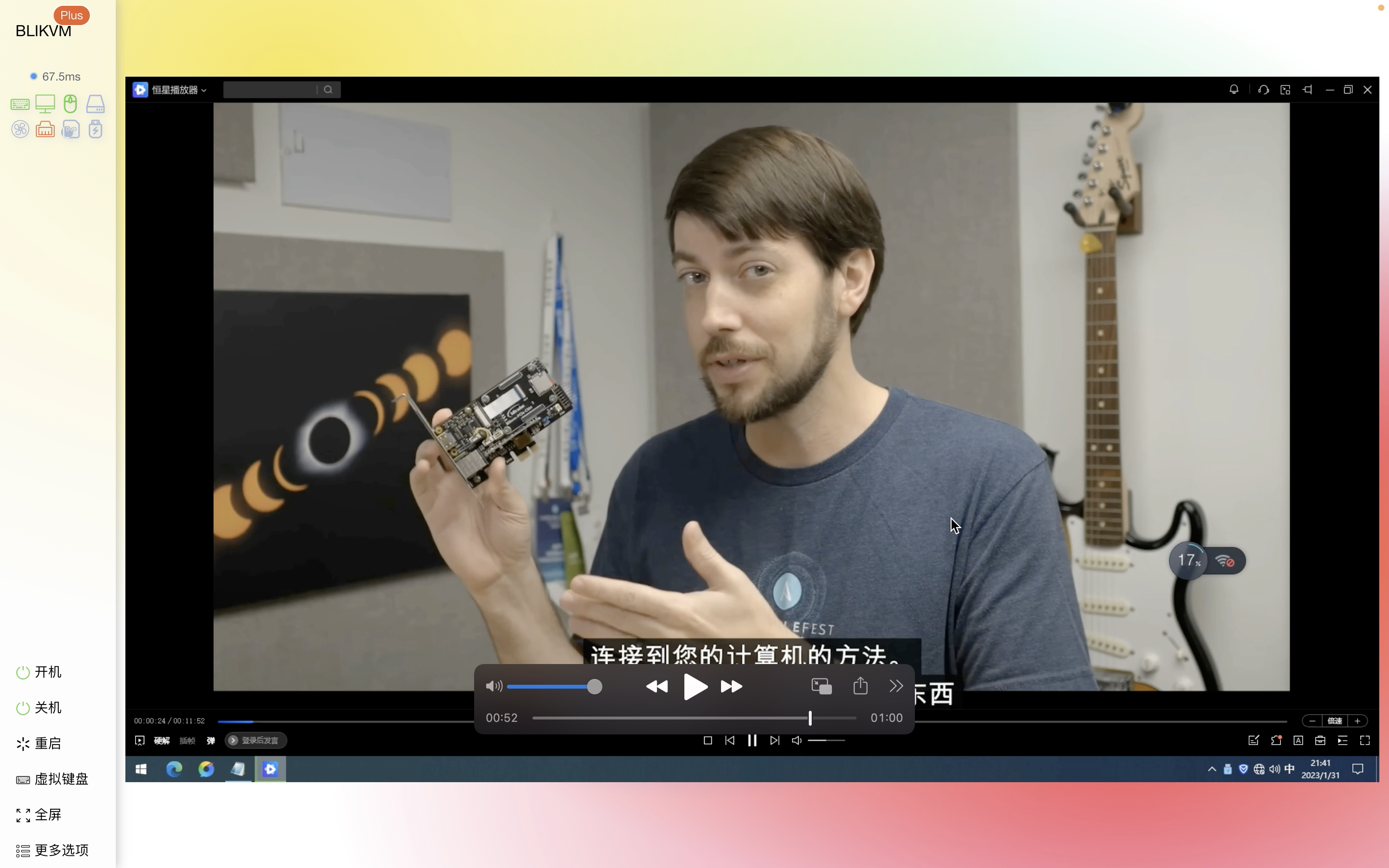

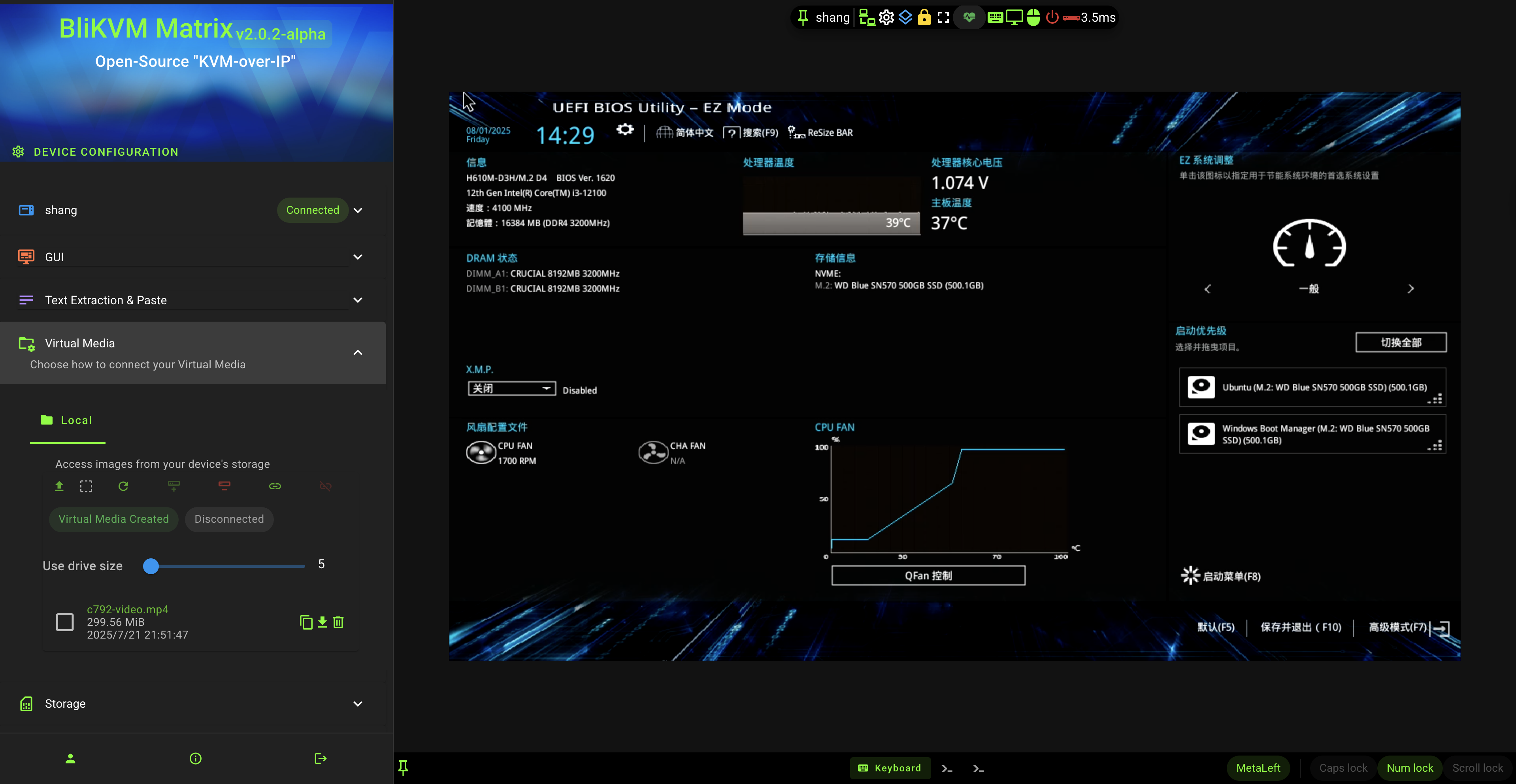

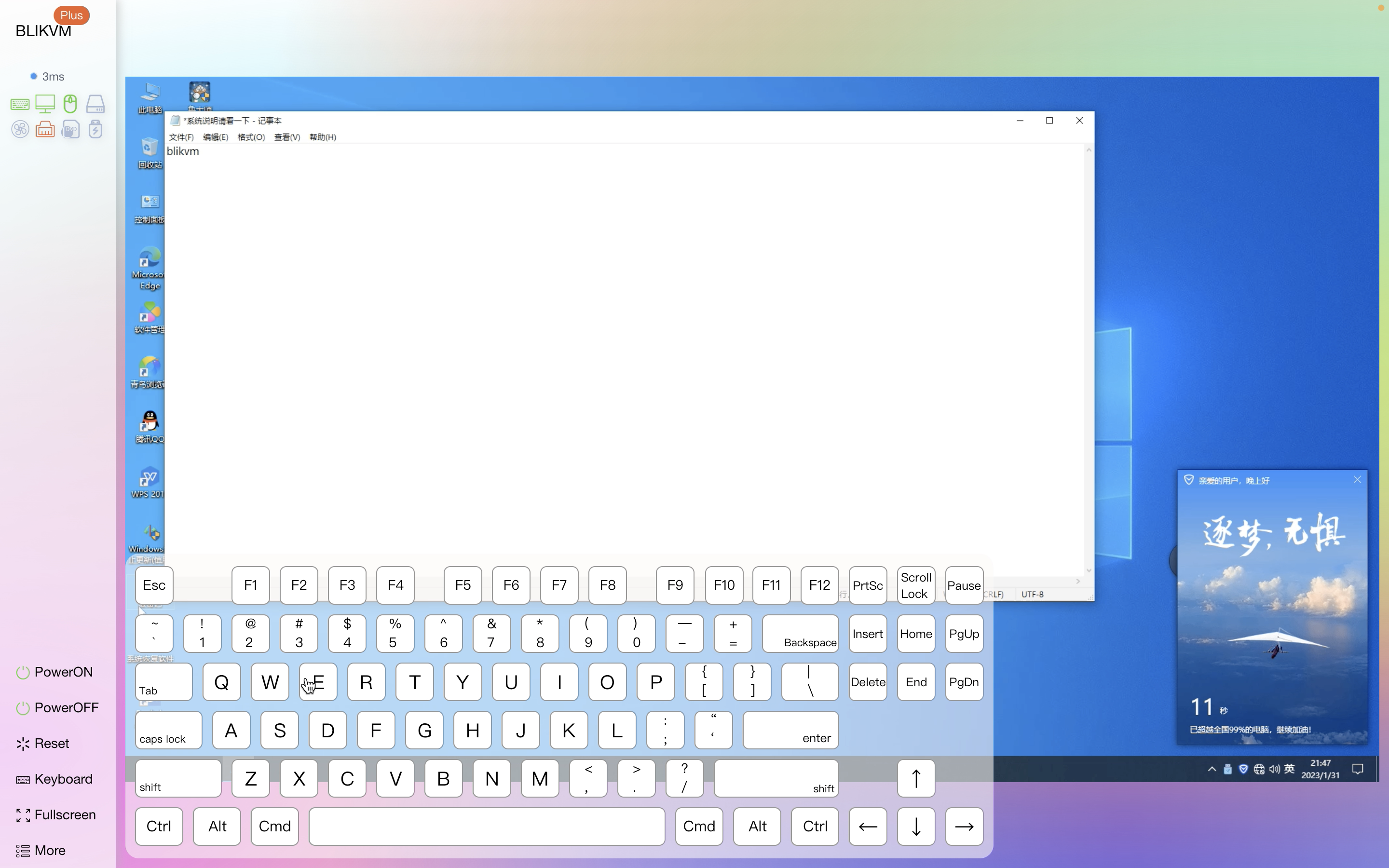

- Find the router-assigned address and verify login, HDMI and USB using First steps.
- Check app / system versions, then restore necessary settings. Do not overwrite a new system with an entire old configuration.
Use the current model's instructions for flashing buttons, jumpers and drivers. They are not interchangeable between boards.
