USB/PWR Splitter

1. Introduction

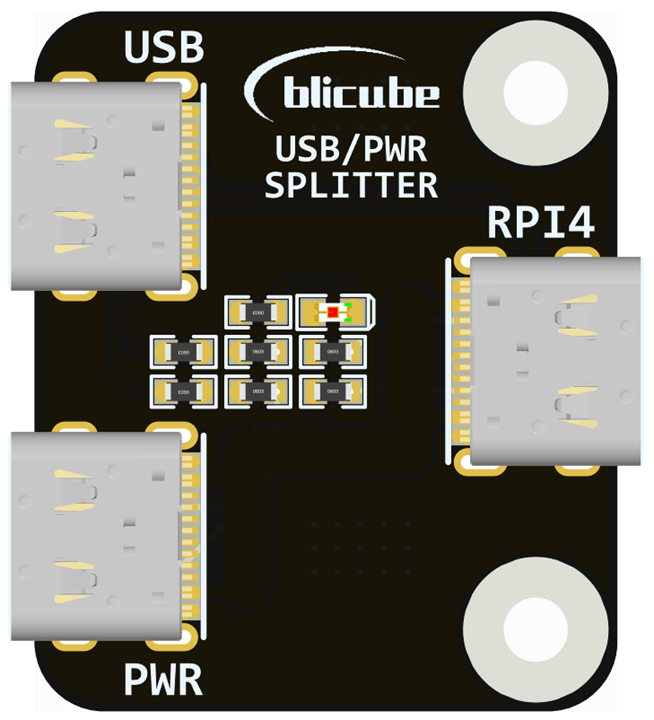

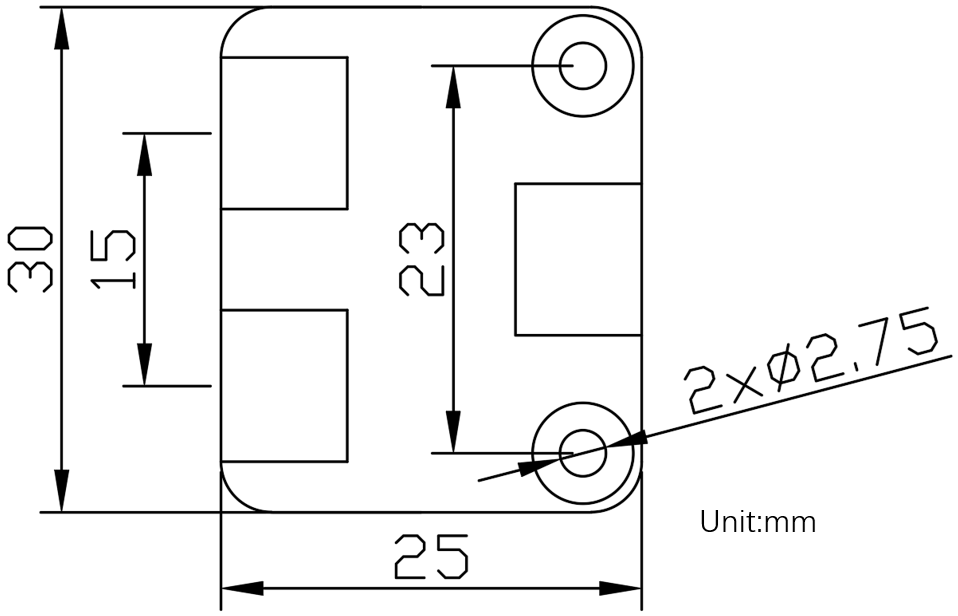

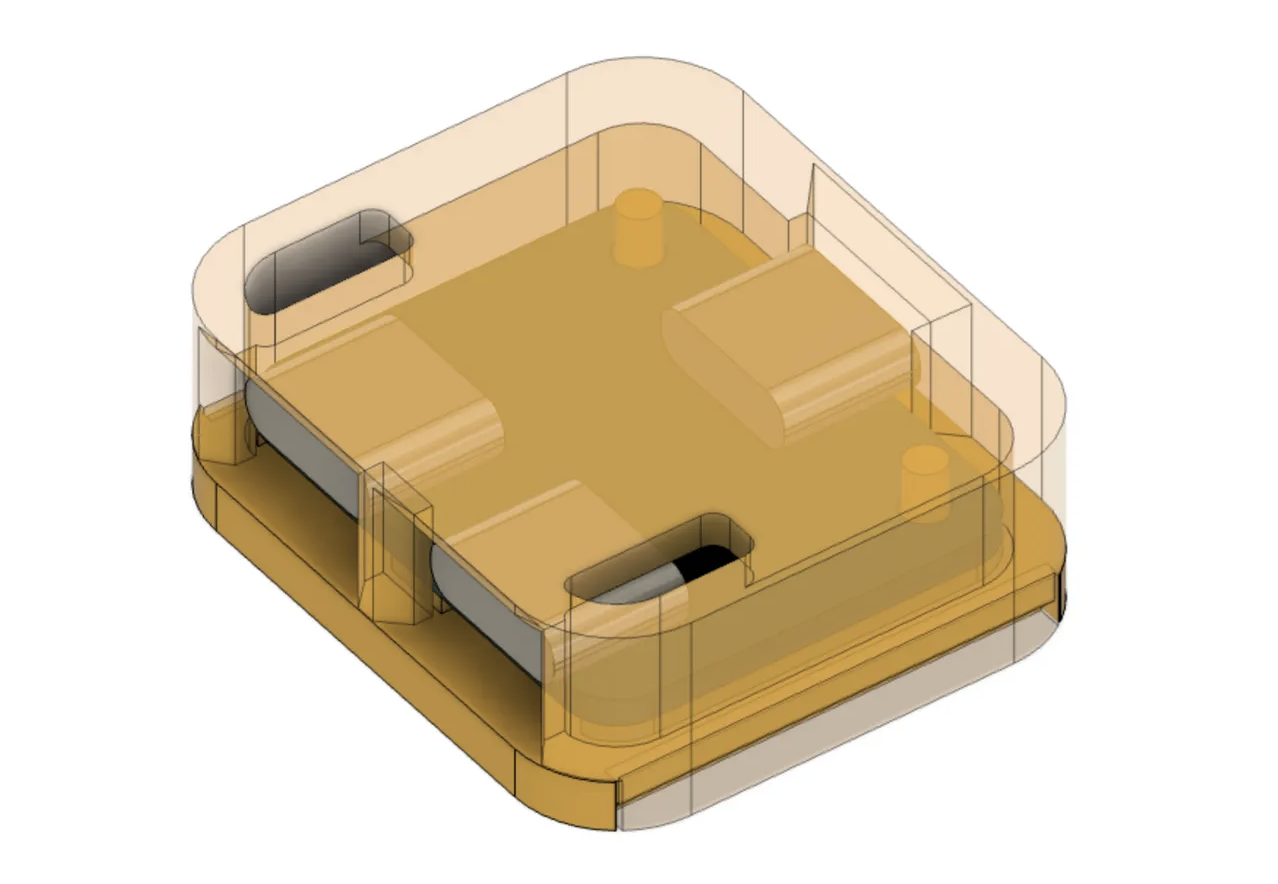

The adaptor allows the Raspberry Pi 4 to be used with a Pi USB-C power supply while allowing access to USB OTG data over a separate USB-C connection.

USB-C (RPI4) <=> USB-C (USB) and USB-C (PWR)

USB-C(RPI4)	USB Type-C(USB)	USB Type-C(PWR)
5V		5V
D-	D-
D+	D+
CC1 10k to 5V	CC1 5.1k to GND	CC1 5.1k to GND
CC2 10k to 5V	CC2 5.1k to GND	CC2 5.1k to GND
GND	GND	GND

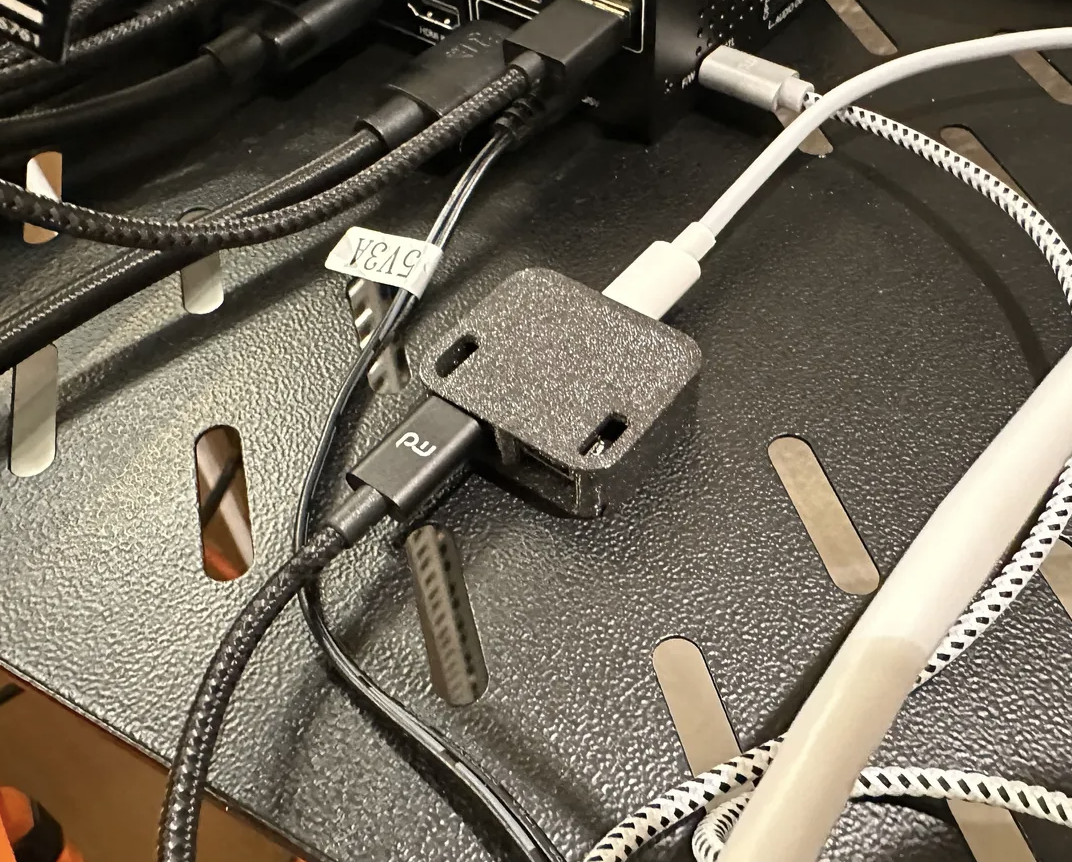

To use the adaptor with the Raspberry Pi 4 you need.

USB-C to USB-C cable[1] between Pi4 and the adaptor board
USB-C to USB-C or Type-A between adaptor board and PC
Power[2] via Official Raspberry Pi USB Type-C Power Supply.

[1] Whilst USB-C cables are generally designed for higher current I still advise using short power cable to the Pi where possible to reduce voltage drop.

[2] PLEASE NOTE With the Pu/Pd resistors on this board it can only be used with 5V supply to power a 5V device.

An adaptor of this kind does not fall within the USB specification. It's designed for use with the official Raspberry Pi USB-C power supply and raspberry pi, use with other power supplies/chargers and devices may cause issues/damage.
